ZBFSL-高浓度含盐废液焚烧炉
点击数:2053次 添加时间:2018-12-23 [打印] [返回] [收藏]

一、智博高浓度含盐废液焚烧炉:
Zhibo Incinerator for Waste Liquid

在工业生产过程中,产生了大量废水,其中大部分是可以用常规生化或物理方式来处理,但还是有少量高浓度废水,它的COD高达十几万甚至上百万,而且还含有无机盐,传统的污水处理方法对此无能为力,焚烧处理不失为高浓度废水的一种有效的方案。

The industrial production will generate large amount of wastewater, most of which can be treated through conventional biological or physical processes, but there is still a small number of high concentration waste water with COD level as high as dozens of thousands or even millions and inorganic salts, which are unable to be removed by the traditional treatment process; so incineration treatment for the highly concentrated waste water is the effective solution that we shall consider;

智博废液焚烧炉根据各类废水的特点专业设计,针对性强,特点如下:

Zhibo incinerator for waste liquid is specially designed based on the characteristics of different types of wastewater with features as following:

1.设备采用实用新型废气废液焚烧专利技术(专利号:ZL 200720155570.3),采用多段送风系统,可降低燃烧过程中排放的NOX,是目前废液燃烧技术中降低NOX污染的有效技术。可有效降低运行成本,使废气在炉内混合充分,焚烧更完全。

The equipment is applied with the patented technology for incineration of waste gas and waste liquid (Patent No.: ZL200720155570.3) to use multi-stage air supply system to reduce emissions of NOX during the combustion, which is currently the effective technology for waste liquid incineration in terms of the reduction of NOX; as the result, the operation cost may be reduced greatly and makes the waste gas completely mixed and burned in the furnace;

2.采用切向式雾化装置——内部混合式双流体雾化器,其混合程度、雾化效果、燃烧速度及效率较高。 过剩系数低,可节约大量燃料。

The use of tangential type atomization device —— inside mix type two-flow atomizer brings extreme high efficiency in terms of the mixing, atomizing and combustion speed with low coefficient of excess and saving of a lot of fuel;

3. 采用切线方式燃烧,让废液废气在炉内充分搅动无死角,燃烧滞留时间达2秒以上。

The combustion in tangent direction ensures the complete mixing and combustion of the waste liquid and waste gas in the furnace with no dead corners and the combustion time is over 2 seconds;

4. 燃烧安全性高,控制逻辑程序中设有炉内点火前不排除易燃易爆气体就不能点火的功能,以防气爆。根据废水的组成和特点,设计不同形状和炉衬的焚烧炉体;根据废水中含盐、含碱的不同情况设计相应的炉温控制方式,确保无机盐焚烧时在炉内不挂壁,避免形成盐雾飘出炉外,形成二次污染。

High safety during the combustion; the control logic process is designed that the furnace will fail to be ignited unless all possible flammable and explosive gases in the furnace are completely removed to prevent gas explosion. Incinerators in different shapes and furnace linings are designed based on the makeup and features of the wastewater; different control modes for furnace temperature are provided in accordance with the content of salt or alkali in the wastewater to ensure that the inorganic salt will not contact the furnace wall while in combustion, which otherwise will have the salt mist and emit out of the furnace bringing secondary pollution;

5. 充分考虑废水焚烧后的废热利用,可产生热水、热风、蒸汽供生产使用。

The waste heat produced by the incineration of the wastewater will be fully utilized to produce hot water, hot air and steam to be used in the production process;

6. 废水、废油、废溶剂可同时处理,以废治废,运行成本低。

Treatment of waste water, waste oil and waste solvents at the same time; that is the waste is treated by utilizing the wastes, which brings the operation cost low;

7. 废液焚烧炉在处理废水的同时可处理有机废气和少量固体废物。

The incinerator for waste liquid is capable of treating the wastewater and at the same time disposing organic gases and small amount of solid wastes;


适合焚烧废水类别:

Wastewater suitable for incineration:

1.  可燃烧废液、废溶剂等

Combustible waste liquid, waste solvents etc;

2.  能够处理的典型有机成分包括:烃、芳香烃、醇、酮、醛、醚、酚、酯、腈等以及其衍生物的废液废水

Typical organic ingredients that may be treated include hydrocarbons, aromatic hydrocarbons, alcohols, ketones, aldehydes, ethers, phenol, esters, nitrile and other derivatives in the waste water;

3.  不可燃有机废气、废水,有机废气、酸,高含盐、含碱高浓度废液等。(专利号:ZL 201020541346.X;ZL 201220062454.8)

Non-combustible organic waste gas, waste water, organic waste gas, acid, highly-concentrated waste liquid with high content of salt or alkali;

4.  可同时处理有机废气、涂装废气,恶臭气等

Capability for treatment of organic gases, coating waste gases and odors etc at the same time;


备注:针对任何浓度废液、废水以及用户的工况条件,我公司都可提供经济实用的个性化处理方案供用户选择。

Notes: Zhibo Company can provide the most economical, practical and personalized treatment solutions to the customers for choice based on waste liquid or wastewater of any concentration and the working conditions supplied by the customers;

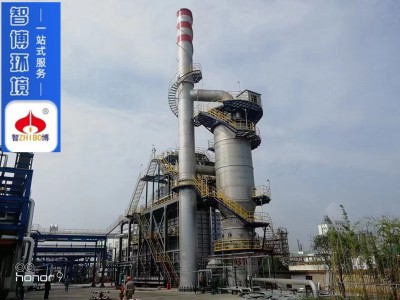

应用于齐塑化工硫化钠废液焚烧炉业绩:


应用于天容农药化工氯化钠废液焚烧炉业绩:


应用于精华制药含氯化钠废液焚烧炉业绩:
